Terumo Advanced Perfusion System 1

Terumo Advanced Perfusion System 1 is intuitive, with quality and technology features that address perfusion practices and ensure feasibility. As techniques evolve, the versatile system configures simply and quickly to adapt to new protocols and leading-edge practices with a focus on improving efficiency, quality of care, and patient outcomes.

Features

  • Central Control Monitor (CCM) with 15" LCD, fast processing, high-resolution screen
  • Compact base with bracket and holder options
  • Standard and advanced multiple cardioplegia delivery options
  • Design allows clinicians to define safety and pump responses
  • Pole-mounted pumps
  • Integrated gas blender
Terumo<sup>™</sup> Advanced Perfusion System 1

Terumo Advanced Perfusion System 1

An advanced system configuration includes base- or pole-mount options for pumps.

An advanced system configuration includes base- or pole-mount options for pumps.

Roller pumps include  software, lids, and magnetic roller pump caps.

Roller pumps include software, lids, and magnetic roller pump caps.

Touch screen display serves as both a safety monitor and as the central interface for the system components.

Touch screen display serves as both a safety monitor and as the central interface for the system components.

Modules plug into any of the available slots.

Modules plug into any of the available slots.

Ordering Information
Catalog NumberDescriptionUnits/Case
Terumo® System 1 Base
801763100/120V Base1
801764220/240V Base1
801016Hand Crank (includes two hand cranks)1
802089Hand Crank Bracket1
90000143Programmed USB Flash Drive System Configuration1
Base Options (Each blender requires a hose kit and adaptor set.)
890500Central Control Monitor (CCM)1
90000746CCM Mounting Arm Bracket1
801188Electronic O2 Blender/Analyzer1
3500CP-G21Pole-Mounted Blender1
814475U.S. Hose Kit (three hoses: green, yellow, grey)1
814474Non-U.S. Hose Kit (three hoses: white, white/black, grey)1
144207NCG Hose Adapter Set1
144215D.I.S.S. Hose Adapter Set1
144223Ohio Diamond Hose Adapter Set1
815459NCG Hose Adapter Set1
815457D.I.S.S. Hose Adapter Set1
815461Ohio Diamond Hose Adapter Set1
Center Poles and Accessories
145980Crossbar Fitting (required for each additional pole)1
165533012' (0.6 m) Pole1
1311153' (0.9 m) Pole1
165534014' (1.2 m) Pole1
816489Shelf1
816370Metallic Sliding Back Cover Panel Kit1
Flexible LED Lamp
89347925" (63.5 cm) Flexible LED Lamp1
Roller Pumps
816571Roller Pump 6" (15.2 cm) Diameter1
816570Roller Pump 4" (10.2 cm) Diameter1
801093Pole Mount Pump Rest with Bracket1
816477Dual Pumps Pole Mount Bracket1
816483Descending Pole Mount Pump Bracket1
Integrated Centrifugal System
164267Drive Motor1
816572Control Unit1
164268Manual Drive Unit1
804372Pole Mount Centrifugal Display Bracket1
816620Flexible Mounting Arm [30]1
Flow Sensing
802018Flow Module1
6382Non-Invasive Flow Sensor, 3/8" (9.5 mm) ID x 3/32" (2.4 mm) Wall, Reusable1
801550Mounting Bracket
(holds two modules)
1
Level Detection (One each included.)
802111Level Detect Module1
195215Yellow Transducer (alert)
Included with safety monitor
1
195274Red Transducer (alarm)1
195240Level Sensor Pads (60 per box), Gel Included60
Air Bubble Detection (One each included.) One Sensor required per air bubble detection system.
802110Air bubble Detect Module1
822763Cable Assembly1
149876Pole Clip Sensor Holder1
5773Ultrasonic Air Sensor, 3/8" x 3/32" (9.5 mm x 2.4 mm)1
5791Ultrasonic Air Sensor, 1/4" x 3/32" (6.4 mm x 2.4 mm)1
5785Ultrasonic Air Sensor 1/4" x 1/16" (6.4 mm x 1.6 mm)1
5793Air Sensor Bracket (optional)1
Venous Occluder
803480Occluder Module1
806455Occluder Head1
Pressure Monitoring
893607Pressure Module (two pressures/module)1
Temperature Monitoring
884660Temperature Module, YSI Series 400 Compatible (two temperatures/module)1
Data Interface Modules
802113Serial Interface Module RS-2321

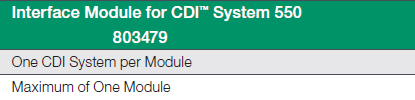

803479Interface Module for CDI® Systems1
Specifications
  • [30] Available for Integrated Centrifugal Drive Motor (164267) and Venous Occluder (803480).
